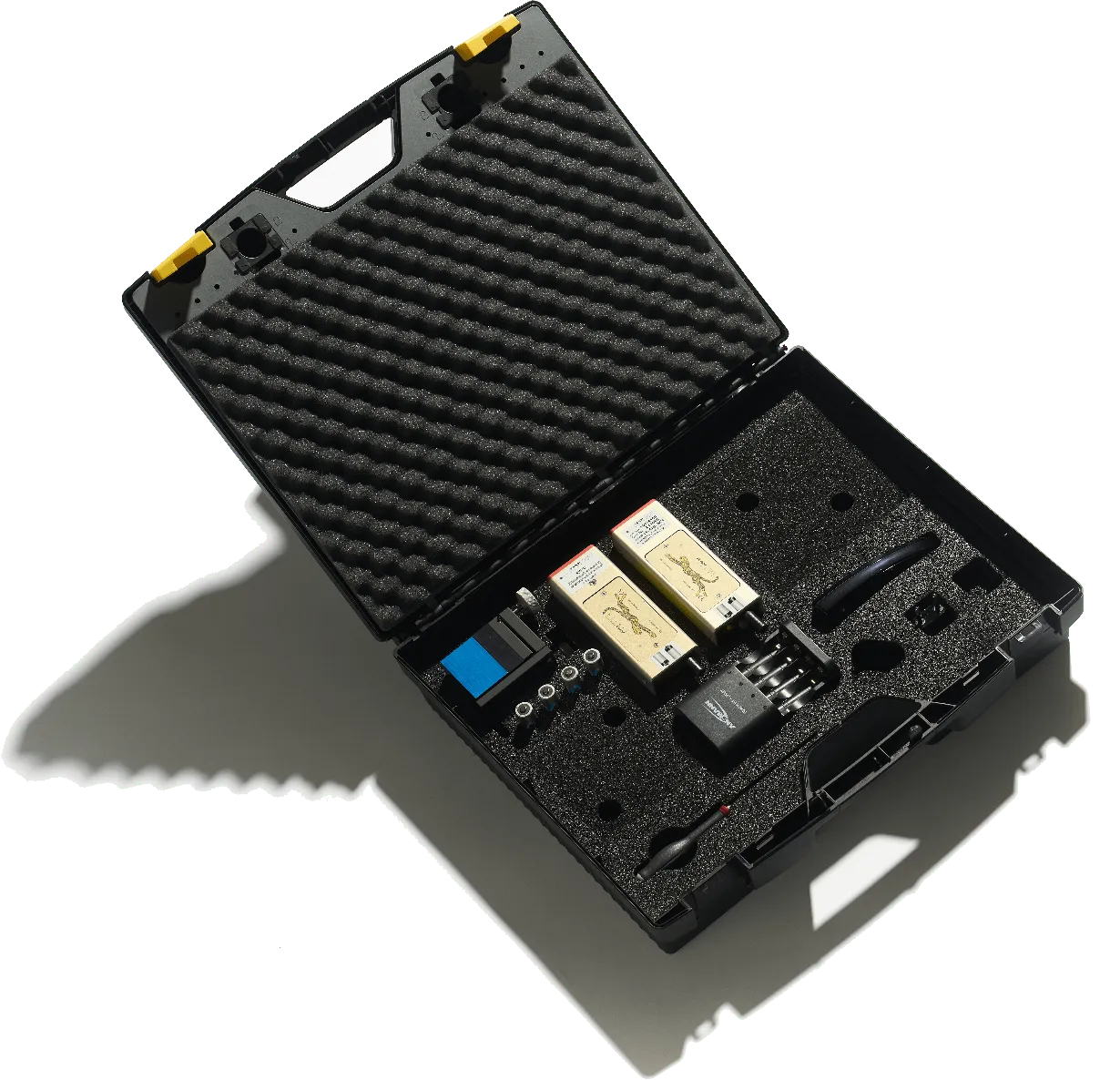

With its compact design and wireless data transfer, the GEPARD system can be mounted on virtually any machine in just a few steps.
Magnetic mounting plates make setup quick, stable, and effortless.
Live Measurement:
Track every adjustment in real time: live position monitoring lets you see the effects on flatness and straightness instantly on screen.
New Feature – Distance Measurement (GEPARD M7):
The GEPARD M7 now goes one step further: in addition to flatness and straightness, it also measures distance. Every measuring point is captured at the exact correct position—without the need for preliminary marking.
High-Precision Geometry Measurement

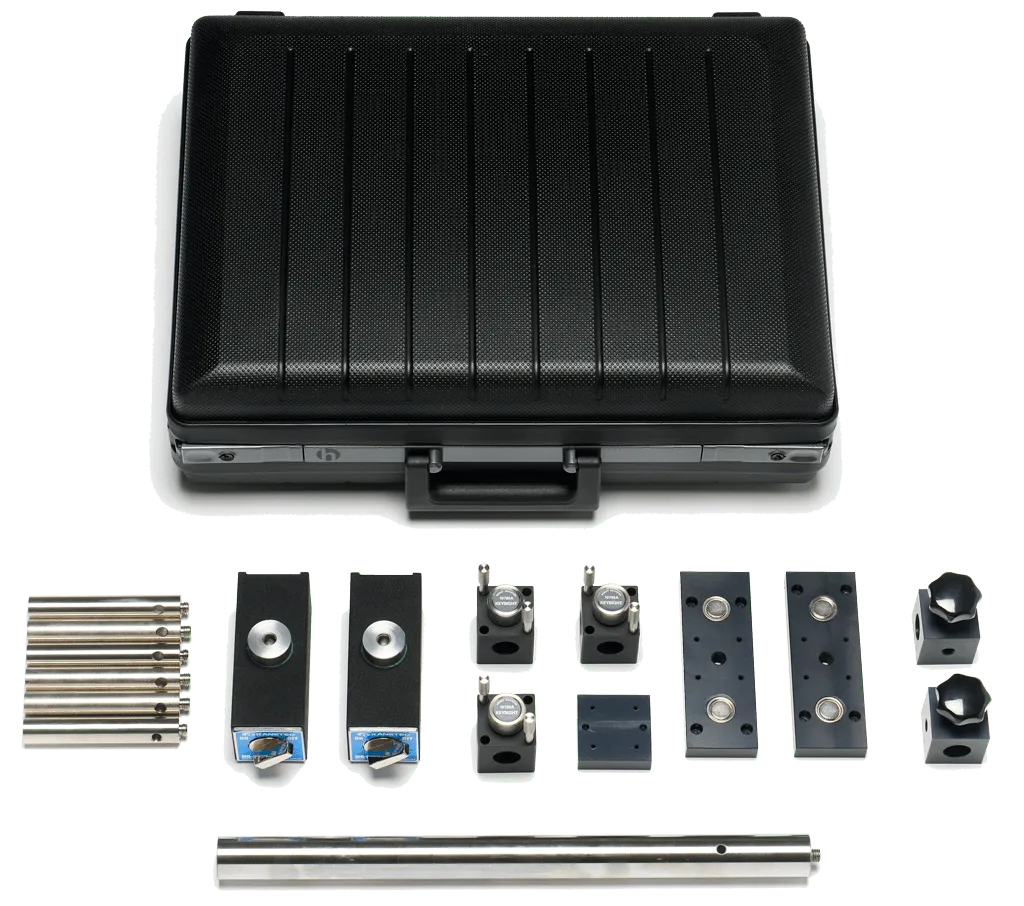

Aligning machine guideways has never been easier. With real-time measurement, you can monitor adjustments to flatness and straightness live on screen. Combined with the versatile accessory kit, the GEPARD system adapts seamlessly to any type of machine—removing every obstacle to precision alignment.

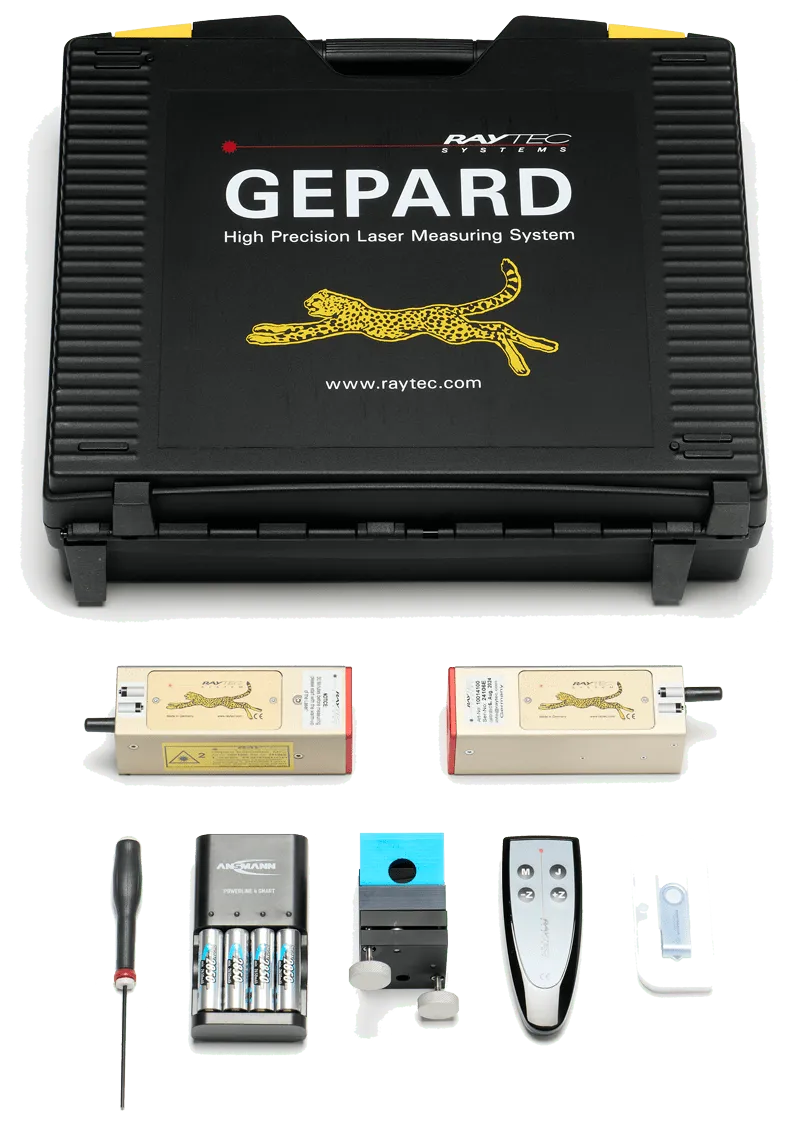

The base system comes complete with the GEPARD transmitter, receiver, Bluetooth dongle, Windows software, rechargeable batteries with charger, hex key, and protective case. Simply connect a laptop and you’re ready to go.
Optional: the pentaprism for squareness and parallelism measurements
This makes it easier than ever to align the guideways of your machine tools with perfect geometric relation to one another.
